明日世界|Tomorrow world
主持设计:赵睿
Project Designer:Rui zhao
设计团队:赵睿、黄志彬、刘军、刘方圆、罗琼、伍启雕、袁乐、何静韵、吴再熙
Design team:Rui Zhao, Zhibin Huang, Jun Liu, Fangyuan Liu, Qiong Luo, Qidiao Wu, Le Yuan, Jingyun He, Zaixi Wu
空间摄影:张恒、伍启雕
Space photographer:Heng Zhang, Qidiao Wu
文字记录:张爱玲
Written records:Ailing Zhang
翻  译:曲梦蝶
Translator:Mengdie Qu
设计时间:2016.04
Design time:April 2016
项目面积:4200㎡
Project area:4200 m²
项目地址:上海
Project address:shanghai
主要材料:灯膜、钢材、玻璃、乳胶漆、俄罗斯松木
Main materials:lamp film, steel, glass, latex paint, Russian pine
明日世界设计中心,是上海世博会时留下来的临时建筑,这些年里,也换了好几个业主,他们对建筑物的室内都进行过不同程度的改造,所以最终留下来的内部结构相对比较复杂。
Tomorrow world design center is a temporary building left over from the Shanghai World expo, Over the years, there have been several different owners, they have undergone various modifications to the interior of the building, So the final structure of the internal structure is relatively complex.
甲方希望做一个公益性的项目,免费提供给设计师办公,以及进行家具的展示等。
Party A wants to do a public welfare project which is free of charge to designers and free for the display of furniture.
在接受设计任务之前,结构改造已经开始在施工了,到了工地现场,被现场的内部球形网架及错中复杂的裸露钢结构震撼了。
The structural transformation has already begun before we accepted the design task, after arrived in building site we are shocked by the internal spherical grille and intricate exposed steel structure.
在多次结构改造过程后,原有的结构框架已变得十分混乱,但没想到,这无意的混乱,却天然地透着一种能瞬间打动人的力度和美感。
The original structural framework has become very confusing after several times of structural transformation, but surprisingly this unintentional confusion naturally reveals the strength and beauty moment which can instantly touch people.

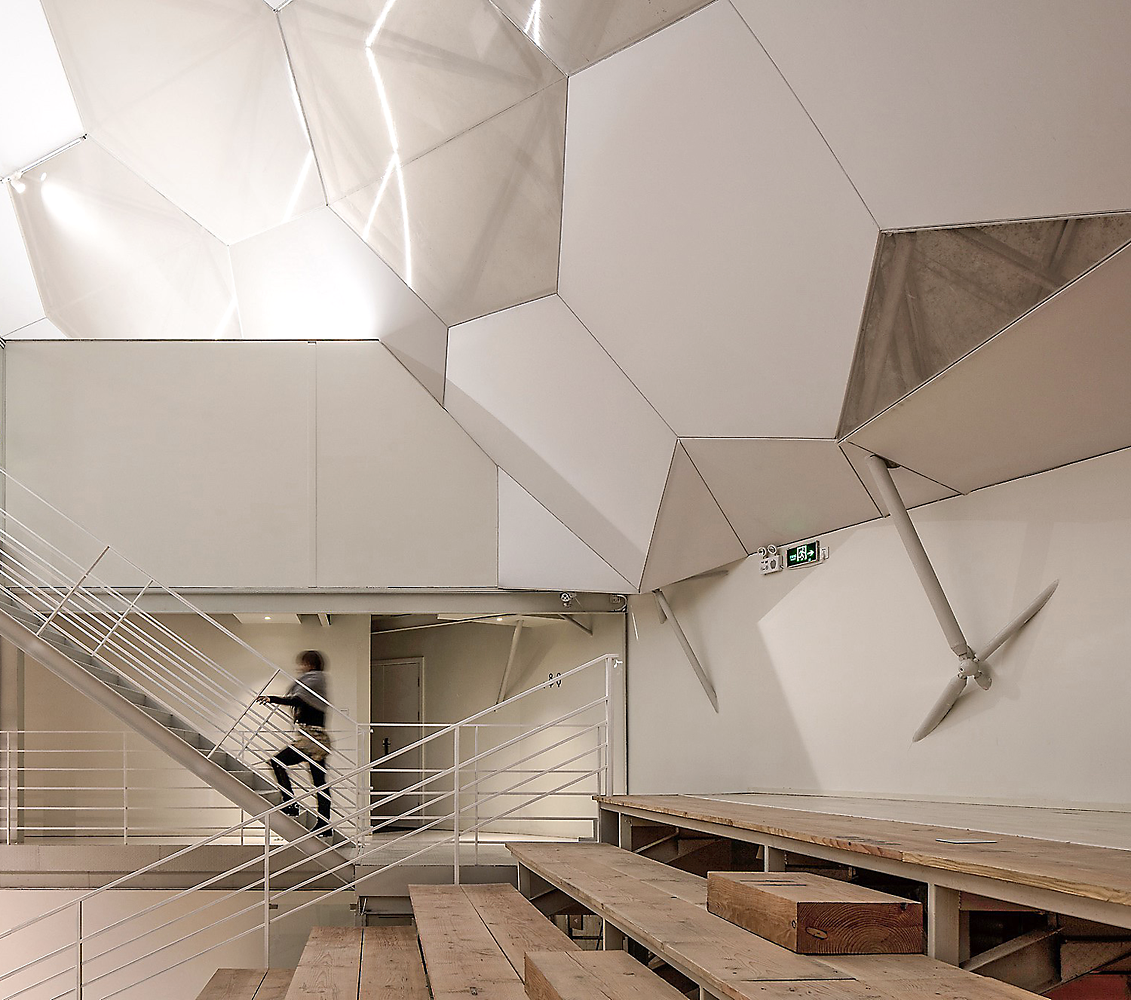

所以,保留并将原有球形网架的钢结构暴露出来,延伸原有钢结构的穿插痕迹同,就成了我们整体设计的基本方向和手法要求。
Therefore, it is the direction of the overall design and technical requirements to retain and to expose the original steel structure of spherical grid, and to extend the traces of original steel structure.
为了将这种裸露凌乱美的感觉表现出来,设计中特意没有避开墙体与原结构硬撞的痕迹,而是让其像雕塑一样存在于墙体上,形成一幅立体的画面。
To the bare messy beautiful feeling, deliberately did not avoid in the design of the wall and the trace of the original structure of hard hit, but let it like a sculpture exists in wall body, forming a three-dimensional picture.
另外,原有的建筑是单层膜结构,整个室内的能源损耗会很大,为了节省能源,同时,又能将现场球形网架的气势和裸露结构的美感保留下来,我们跟材料公司协商后,在室内加多了一层透明膜。
In addition, the original building is a single layer membrane structure, it makes a huge loss of entire indoor energy. In order to save energy, and to retain the momentum of the spherical grid of the and the beauty of the bare structure in the meanwhile, we put a layer of transparent film indoor after consulted with the material company.
通过膜结构,自然光会照进整个室内,那么在主色调上,我们就选用了比较浅的灰白色和原木色组合,这样第一感觉很轻松,也很符合空间的多变性,例如,在举办活动或者展示家具时会经常改变平面布置,干净柔和的浅色调就可以让它变得更容易实现。
Natural light shines through the membrane structure throughout the room. So in the main colors, we choose the combination of a relatively light gray and the wood color, So that the first feeling is very easy, but also it is very consistent with the variability of the space. For example, we often change the layout in the event of activities or display furniture, the clean and soft light can make it easier to achieve the desired effect.

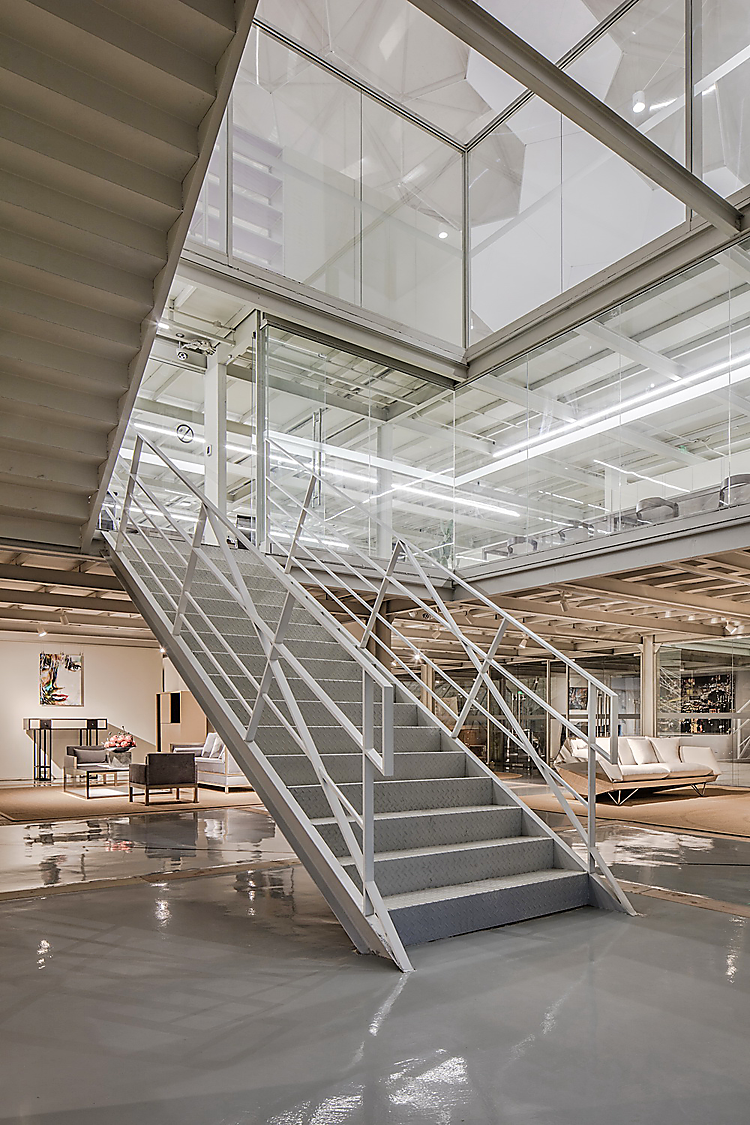

公共区域 | 楼梯连廊

在这个公益性的项目里,应该有一个很大的公共活动区域,提供给大家举办活动、交流、酒会、发布会、演讲会等等,所以,功能分区设置了办公室、公共区、产品展示区、会议室、咖啡厅等,这样,空间的活跃度很好,空间与空间之间也能对上话。
There should be a large public activity area in this public welfare project for the activities, exchanges, receptions, press conferences, lectures, etc., so the functional partition is set up with the office, public areas, product display area, conference rooms, cafes, etc. In this way, the space is very active, and there will be sense of communication between space and space.

办公空间

公共区 | 咖啡厅

为了打破常规办公楼局促感和紧张的气氛,室内还种植了很多植物,设置了多重楼梯,人在空间里可以自由走动。
In order to remove the atmosphere of conventional office building , we also planted a lot of plants and set up multiple stairs indoors, people can walk freely in this space.

课程培训 | 会议发布

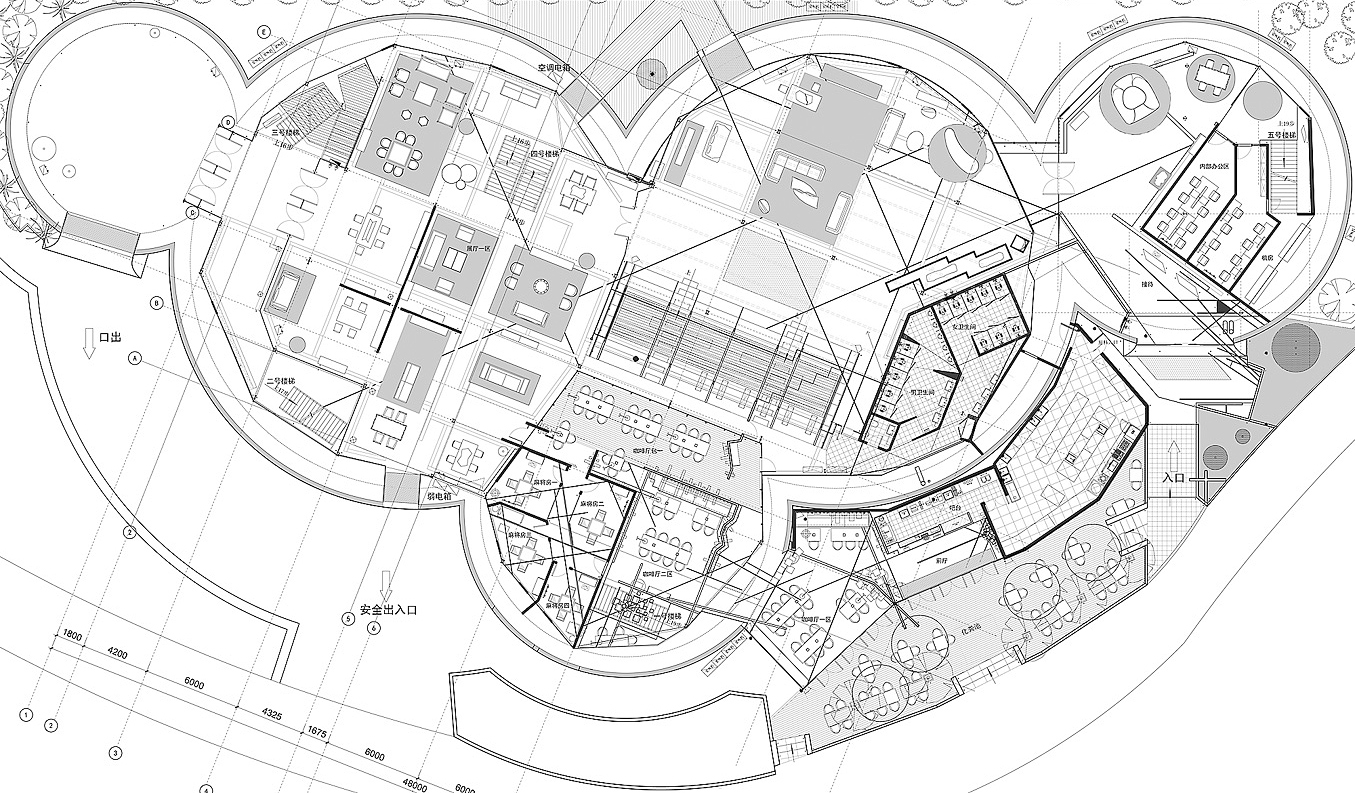

一层总平面

二层总平面

三层总平面

方案调整 | 现场跟进

主持设计 | 赵睿
Project Designer | Rui zhao
设计团队 | 黄志彬、刘军、刘方圆、罗琼、伍启雕、袁乐、何静韵、吴再熙
Design team | Zhibin Huang, Jun Liu, Fangyuan Liu, Qiong Luo, Qidiao Wu, Le Yuan, Jingyun He, Zaixi Wu
空间摄影 | 张恒、伍启雕
Space photographer | Heng Zhang, Qidiao Wu
文字记录 | 张爱玲
Written records | Ailing Zhang
翻  译 | 曲梦蝶
Translator | Mengdie Qu
设计时间 | 2016.04
Design time | April 2016
项目面积 | 4200㎡
Project area | 4200 m²
主要材料 | 灯膜、钢材、玻璃、乳胶漆、俄罗斯松木
Main materials | lamp film, steel, glass, latex paint, Russian pine
明日世界设计中心,是上海世博会时留下来的临时建筑,这些年里,也换了好几个业主,他们对建筑物的室内都进行过不同程度的改造,所以最终留下来的内部结构相对比较复杂。
Tomorrow world design center is a temporary building left over from the Shanghai World expo, Over the years, there have been several different owners, they have undergone various modifications to the interior of the building, So the final structure of the internal structure is relatively complex.
甲方希望做一个公益性的项目,免费提供给设计师办公,以及进行家具的展示等。 Party A wants to do a public welfare project which is free of charge to designers and free for the display of furniture.
在接受设计任务之前,结构改造已经开始在施工了,到了工地现场,被现场的内部球形网架及错中复杂的裸露钢结构震撼了。
The structural transformation has already begun before we accepted the design task, after arrived in building site we are shocked by the internal spherical grille and intricate exposed steel structure.
在多次结构改造过程后,原有的结构框架已变得十分混乱,但没想到,这无意的混乱,却天然地透着一种能瞬间打动人的力度和美感。
The original structural framework has become very confusing after several times of structural transformation, but surprisingly this unintentional confusion naturally reveals the strength and beauty moment which can instantly touch people.
所以,保留并将原有球形网架的钢结构暴露出来,延伸原有钢结构的穿插痕迹同,就成了我们整体设计的基本方向和手法要求。
Therefore, it is the direction of the overall design and technical requirements to retain and to expose the original steel structure of spherical grid, and to extend the traces of original steel structure.
为了将这种裸露凌乱美的感觉表现出来,设计中特意没有避开墙体与原结构硬撞的痕迹,而是让其像雕塑一样存在于墙体上,形成一幅立体的画面。
To the bare messy beautiful feeling, deliberately did not avoid in the design of the wall and the trace of the original structure of hard hit, but let it like a sculpture exists in wall body, forming a three-dimensional picture.
另外,原有的建筑是单层膜结构,整个室内的能源损耗会很大,为了节省能源,同时,又能将现场球形网架的气势和裸露结构的美感保留下来,我们跟材料公司协商后,在室内加多了一层透明膜。
In addition, the original building is a single layer membrane structure, it makes a huge loss of entire indoor energy. In order to save energy, and to retain the momentum of the spherical grid of the and the beauty of the bare structure in the meanwhile, we put a layer of transparent film indoor after consulted with the material company.
通过膜结构,自然光会照进整个室内,那么在主色调上,我们就选用了比较浅的灰白色和原木色组合,这样第一感觉很轻松,也很符合空间的多变性,例如,在举办活动或者展示家具时会经常改变平面布置,干净柔和的浅色调就可以让它变得更容易实现。
Natural light shines through the membrane structure throughout the room. So in the main colors, we choose the combination of a relatively light gray and the wood color, So that the first feeling is very easy, but also it is very consistent with the variability of the space. For example, we often change the layout in the event of activities or display furniture, the clean and soft light can make it easier to achieve the desired effect.
公共区域 | 家具展示
在这个公益性的项目里,应该有一个很大的公共活动区域,提供给大家举办活动、交流、酒会、发布会、演讲会等等,所以,功能分区设置了办公室、公共区、产品展示区、会议室、咖啡厅等,这样,空间的活跃度很好,空间与空间之间也能对上话。
There should be a large public activity area in this public welfare project for the activities, exchanges, receptions, press conferences, lectures, etc., so the functional partition is set up with the office, public areas, product display area, conference rooms, cafes, etc. In this way, the space is very active, and there will be sense of communication between space and space.
公共区域 | 楼梯连廊
为了打破常规办公楼局促感和紧张的气氛,室内还种植了很多植物,设置了多重楼梯,人在空间里可以自由走动。
In order to remove the atmosphere of conventional office building , we also planted a lot of plants and set up multiple stairs indoors, people can walk freely in this space.
办公空间
公共区 | 咖啡厅
课程培训 | 会议发布
一层总平面
二层总平面
三层总平面
方案调整|现场跟进
